- 商品名稱：3*95+3*50/3 12/20kV卷筒電纜研發
- 添加時間：2023-12-07 09:43:33
- 推薦度：
介紹：

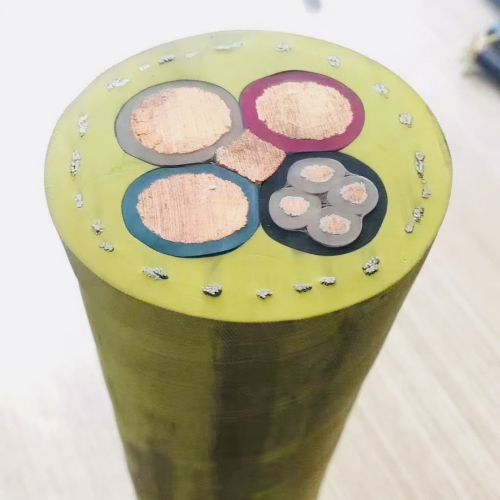

3*95+3*50/3 12/20kV卷筒電纜研發
Phase core主線芯Conductor
導體Class 5 Tinned copper conductor
5類鍍錫銅絞合導體 IEC60228Conductor screen
導體屏蔽Semi-conductive compound
半導電料Insulation
絕緣EPR
乙丙橡膠Insulation screen
絕緣屏蔽Semi-conductive compound
半導電料 Earth Core
地線芯Class 5 Tinned copper conductor
5類鍍錫銅絞合導體Covering
包覆層Semi-conductive compound
半導電料> Inner sheath
內護套CPE氯化聚乙烯 Black黑
保護加強層Nylon thread braiding
高強度尼龍線> Outer sheath
外護套CPE氯化聚乙烯 Red紅
Spec 規格 | Conductor diameter 導體外徑 mm | Insulation diameter 絕緣外徑 mm | Outer diameter 成品外徑mm | Approximate Weight 近似重量kg/km | DC resistance at 20°C 直流電阻 max. | Short Circuit Current (conductor) 短路容量kA | |
12/20kV | |||||||
3*95+3*50/3 | 12.9 | 22.0 | 63.3 | ±3.0 | 6830 | 0.210 | 13.59 |
